Thanks to Alex Tarkovsky, there is an upgrade to Glade 3 with Gtk2Hs on the Gtk2Hs web site. That is now the recommended version of this tutorial.

Developing Gnome Apps with Glade

A Tutorial

Part 1

Eddy Ahmed


Adapted for Haskell and Gtk2Hs

by Hans van Thiel

Important Notes


This tutorial will attempt to provide a step by step guide for developers wanting to write gnome apps using Glade. This particular page is an adaptation of the C based original for the functional programming language Haskell and specifically for the GUI toolkit Gtk2Hs. We assume you are using Gnome, but because the GTK+ toolkit, the Glade Interface Designer and Gtk2Hs are now available on other platforms too, this might also help you get started there.

You will need:

You will be creating a modified "Hello World!" application like this:

Main Window

Why use Glade?

Glade enables the developer to quickly and efficiently design an application visually and then move on to concentrate on actual program implementation instead of being bogged down with user interface issues.

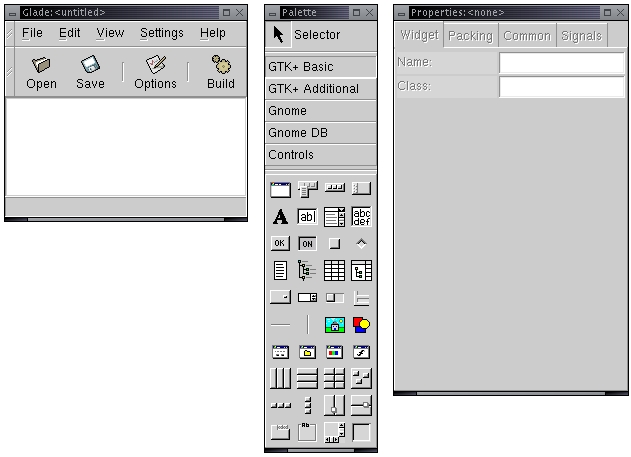

1) Start up glade. You should see the following three windows: Screenshot 1

The first window controls your project. The palette allows you to add widgets to your application, while the properties window will allow a selected widget's properties to be modified and signals (more on this later) to be defined.

2) Open a new project. The first thing we're going to need is a place to add widgets, so lets first create a window by clicking on the window icon from the palette.

Window Window palette icon.

A new window will pop-up ready to be modified. Notice the properties for the window, particularly that the name of the window is "window1". Lets modify the title of this window which is displayed in the title bar to something a little more descriptive. Simply change "window1" in the Widget tab from the Properties window to something like "My First Gnome App".

3) OK, so the window is all set up, now to add some buttons and labels.... but wait! We can't just add widgets just yet... Widgets in Gnome apps are packed. Packing widgets may seem to be a burden at first but is actually an ingenious method to allow many nifty things, the most immediate being automatic resizing. When a user resizes an app we usually would like the widgets in the window to be resized to take advantage of a bigger space or to shrink to fit in a newly sized window. Packing allows this to be done automatically and greatly frees the developer from writing resizing code. Packing is done by creating boxes or tables. These widgets are invisible, meaning they can't be seen at run time however they have a direct effect on the application.

If you look back at the app we'll be creating, you can see that you can divide up the window into three rows: the label at the top, the text entry in the middle and the two buttons at the bottom. So what we'll do is create a Vertical Box with three rows. Click the Vertical Box icon in the palette and then click anywhere in the window we just created.

Vbox Vertical Box palette icon.

Specify that you want three rows created and click OK. The window will now be divided up into three rows, ready for more widgets to be added.

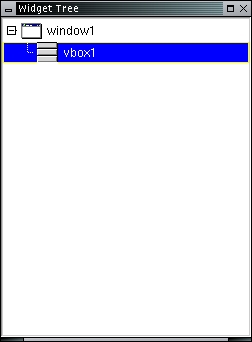

At this point you might want to open the Widget Tree window by selecting Show Widget Tree from the View menu.


This will allow you to easily see the hierarchy of your widgets as well as easily select a widget.

Now we can easily add our label and text entry widgets into the first and second row respectively by simply clicking the Label icon from the palette and clicking the first row in our window. Similarly add a Text Entry widget to the second row as well.

LabelText Label and Text Entry palette icons.

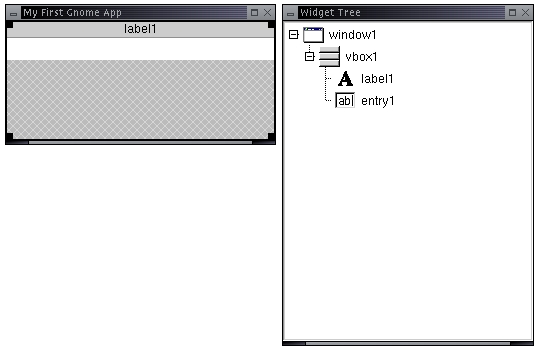

Your application window and corresponding widget tree should now look something like this:


Before we can add the buttons in the third row we must create a horizontal box within the third row of the vertical box. The new horizontal box will have two columns, one for each button. So lets do this by clicking the horizontal box icon from the palette and clicking in the third row of our window.

LabelText Horizontal Box palette icon.

Specify two columns and click OK. The third row will now be divided horizontally into two equal section.

Perhaps this would be a good time to save our project. By default Glade will save your project under a Projects directory in your home directory. Name your project something simple such as hellohaskell.

Let's move on to the buttons. Each of the sections we created in the third row will each hold a button. So let's add a button to each section by clicking the Button icon from the palette and clicking in the first section. Perform a similar action for the second section.

LabelText Button palette icon.

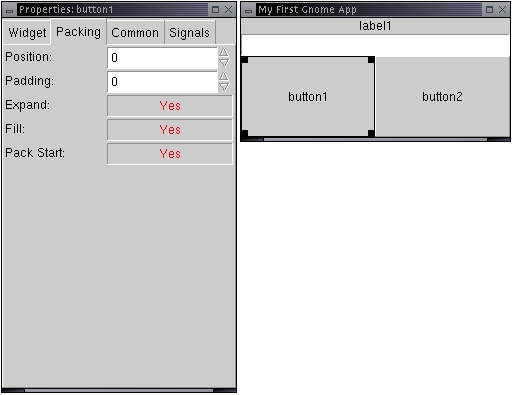

OK, so our buttons are there.... but they don't look quite right. This is because we have to pack them properly. Do this by clicking on the first button and from the Properties window selecting the Packing tab. Enable both the Expand and Fill property for the button by setting both to Yes. You should see the first button fill up a bit. Do the same thing to the second button and you should get it looking a bit better:


We can make things look even better yet. Change the following:

Remember you can select widgets easily from the Widget Tree window.

  • Change the Homogeneous property of hbox1 to Yes
  • Change the Border Width of hbox1 and vbox1 to 4
  • Change the Spacing of hbox1 and vbox1 to 4
  • Change the Stock Button property of button1 to OK
  • Change the Stock Button property of button2 to Close

The great thing when developing with Glade is you can immediately see what your app will look like... so play around with the properties till it looks just the way you want it.

One last property to set before we start on the coding. Change the Label property of label1 to "Enter your name:"

Without writing one line of code we've actually created a fully functioning application! Tell Glade to build some source code by clicking Build from the toolbar or selecting Build Source Code from the File menu.

If you now look in your Project directory (remember we saved it in /home/[your username]/Projects/hellohaskell) you'll see all the files Glade has created. Some of them are handy general purpose files and some support C or C++ development. You can find out more about those in the original or one of its translations. Because in Haskell everything is done with functions anyway, things are actually a bit easier, and all we need is the file with the glade extension. This is an XML file and therefore you can inspect it with an editor or a browser. If you do this, you'll see every widget you've specified as an XML element, each with an id attribute. This unique name, in our case assigned by default by Glade, is used by Gtk2Hs to access the widgets, as you can see in line 12 of the following listing.

First, however, you have to take care of some administration. This includes importing the modules in lines 3 and 4, initializing the graphics in line 7 and adding the main graphics function at the end in line 14. This is the basic template for all Gtk2Hs user modules. To use a .glade file you must also add something like lines 8 - 11 to the template. If the specified file is found, you now have a handle to access all your widgets.

HelloHaskell1 Listing

Line 12 shows you how to get a handle to a specified widget using the general xmlGetWidget function. Its first argument is the handle to the glade, its second a cast to the desired type, and its third the name (its id attribute) in the XML file. We'll use this function again and again. Lastly, line 13 contains the action to be taken when the user closes the window. If you have the Glasgow Haskell Compiler installed you can use its interactive version ghci to run (your copy of) this listing.

Now all this fun is well and good.... but our app is still kind of blah when it doesn't actually do anything. So let's start up on the coding!

Since this is just an introductory tutorial we won't do anything too fancy. What we would like to accomplish is for the user to type in his/her name in the text entry field and when OK is clicked for the label to change to greet the user with a Hello followed by the entered name. Also the Close button should quit the application.

There is some terminology here, which we'll ignore, because things are a bit simpler in a functional programming language. The general idea is that something can happen to a widget, a signal is created, and the programmer codes what the response will be. For example:

onClicked button $ do .......

(Recall that $ is the execute function and is only used to separate the arguments of onClicked.)

So let's start by creating two signals, one for each button. We'll start off with the Close button, since that is the easiest to implement. Let's add some trivial code too, just to see our event in action. The putStrLn function is used to print to standard out, so let's add some code to signify that button2 was clicked.
Before mainGUI, which always must be last, add the following two lines:

clbutton <- xmlGetWidget lohaXml castToButton "button2"
onClicked clbutton (putStrLn "Close Button Clicked")

As you see, you use the xmlGetWidget function again, but with a different typecast than before. To actually implement the Close button like its name says, you might try to use mainQuit in place of putStrLn. If you do this in ghci you'll see that pressing the button will indeed exit to ghci, but leave the window and its descendants on the screen. When you try to close the window you'll probably get a message from the operating system that the application is not responding, or something like that. What you need is:

onClicked $ do widgetDestroy window

This will do as advertised, and because of line 3 (see the listing) the program will also exit cleanly.

And you now have a fully functioning Close button!

Let's re-cap what we want our OK button to do. After a user types in their name in the text entry field we will change the label to display "Hello User", with User being the contents of the text entry field. This will involve two basic concepts: retrieving data from a widget and setting a widgets property.

Functions specific to widgets are well documented in a myriad of places. We'll need the Gtk2Hs API and, among other things, this has functions specific to our immediate needs: labels and text entries.

The first thing we'll need is a way to obtain the text the user had entered. This is done with the entryGetText function. Secondly we need a way to set the text in our label. This is done with the labelSetTextfunction. And, of course, we need to create handles for the new widgets we want to use. Lines 17 - 19 in the listing won't surprise you, and the functionality of lines 20 - 22 is no rocket science either.

HelloHaskell4 Listing

We're done! Edit the program and compile with ghci or ghc. Type your name in the entry field and click OK. Hello User! Not too shabby huh...


Exercise: Look up the Gtk2Hs API documentation to find the function for the event when the user presses Enter, and use this it to implement the same functionality as the OK button.

Exercise: Run one of the listings with ghci, using the main command, and close the window, but don't leave the module. Now open the Glade Interface Designer and open your project. Change the name of the window and use Build to implement the change in the glade file. Now run main again in ghci and verify that the name has changed. Experiment to find out what other changes you can make in your GUI with the same Haskell code.

What Next:

For Glade see part 2 of the original tutorial.

For Gtk2Hs see An Introduction to Gtk2Hs, A Haskell GUI Library by Kenneth Hoste.

Copyright notice:

© 2002 Eddy Ahmed
Text and images have been adapted and/or used with permission of the author and retainer of the copyright.
Adaptation for Haskell and Gtk2Hs by Hans van Thiel October 2006.

The examples have been tested with GHC Version 6.4. In the newer version 6.6 (since 6.4.2) ghci no longer works with the Gtk2Hs library because ghci uses the threaded rts. So, with the new GHC version, you must compile as in: ghc --make filename.hs -o objectfile

Hugs and YHC cannot be used either, at this time, for different technical reasons.

December 8, 2006
