Arrow widget draws an arrowhead, facing in a number of
possible directions and having a number of possible styles. Like the
Label widget, it emits no signals.
There are only two functions for manipulating an
arrowNew :: ArrowType -> ShadowType -> IO Arrow arrowSet :: ArrowClass self => self -> ArrowType -> ShadowType -> IO ()
ArrowType has five constructors:
ShadowType also has five constructors:
Tooltips are the little text strings that pop up when you leave your pointer over a button or other widget for a few seconds.
Widgets that do not receive events (widgets that do not have their own window) will not work with tooltips.
The first call you will use creates a new tooltip. You only need to do this once for a set of tooltips.
tooltipsNew :: IO Tooltips
Then, for every widget, use:
tooltipsSetTip :: (TooltipsClass self, WidgetClass widget) => self -> widget -> String -> String -> IO ()
The first argument is the tooltip you've already created, followed by the widget you wish to have this tooltip pop up for, and the text you wish it to say. The last argument is a text string that can be used as an identifier.
You can turn the tips associated with a
Tooltips value on or off
tooltipsEnable :: TooltipsClass self => self -> IO () tooltipsDisable :: TooltipsClass self => self -> IO ()
Here's an example to illustrate the use of arrows and tooltips.

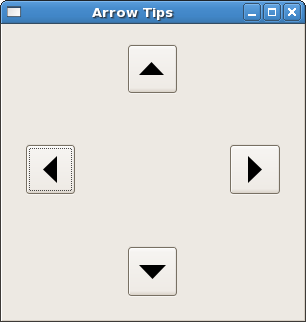

The window above has been resized from its default size, to show how the packing in a table preserves the spacing of the buttons with their arrows.
Note: The tooltips don't work with GHCi (on my machine) but they do when compiled. You cannot see them in the screenshot, of course.
import Graphics.UI.Gtk main :: IO () main = do initGUI window <- windowNew set window [windowTitle := "Arrow Tips", windowDefaultWidth := 200, windowDefaultHeight := 200, containerBorderWidth := 20] table <- tableNew 5 5 True containerAdd window table button1 <- buttonNew button2 <- buttonNew button3 <- buttonNew button4 <- buttonNew tableAttachDefaults table button1 0 1 2 3 tableAttachDefaults table button2 2 3 0 1 tableAttachDefaults table button3 4 5 2 3 tableAttachDefaults table button4 2 3 4 5 tlt <- tooltipsNew arrow1 <- arrowNew ArrowLeft ShadowEtchedIn containerAdd button1 arrow1 tooltipsSetTip tlt button1 "West" "T1" arrow2 <- arrowNew ArrowUp ShadowEtchedOut containerAdd button2 arrow2 tooltipsSetTip tlt button2 "North" "T2" arrow3 <- arrowNew ArrowRight ShadowEtchedIn containerAdd button3 arrow3 tooltipsSetTip tlt button3 "East" "T3" arrow4 <- arrowNew ArrowDown ShadowEtchedOut containerAdd button4 arrow4 tooltipsSetTip tlt button4 "South" "T4" tooltipsEnable tlt widgetShowAll window onDestroy window mainQuit mainGUI
